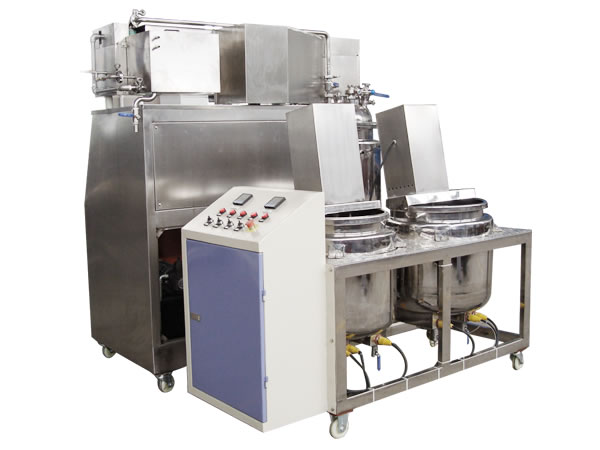

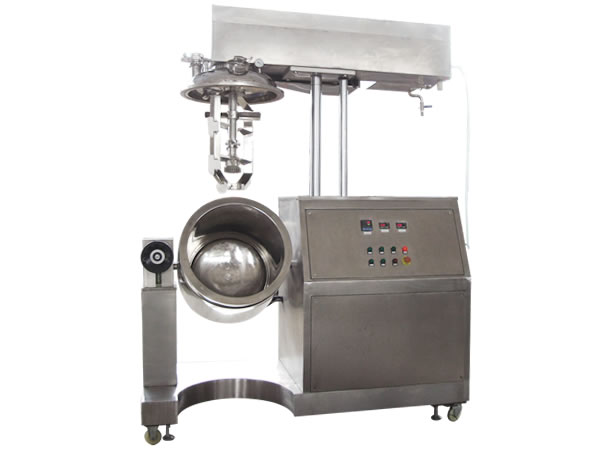

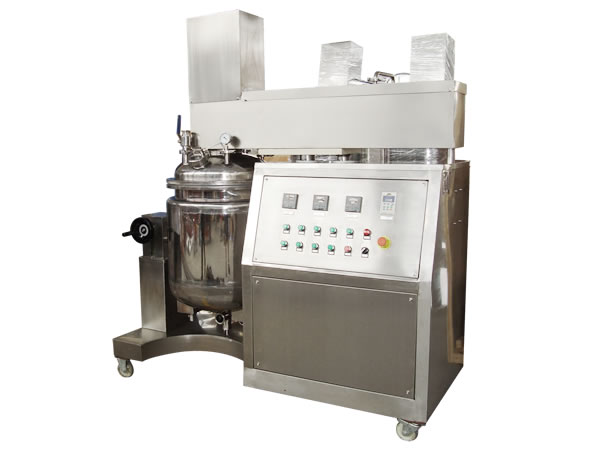

ZJR Vacuum emulsifying machine
Main Components:
Vacuum emulsifying machine is composed of vacuum emulsifier, homogenizing pot, dual direction scraping mixers, vacuum system, electrical heatin/ steam heating temperature-control system, electric cap-hoisting system, electric control cabinet, etc. It is especial equipment for cosmetics, emulsions, medical ointment, and liquid cream.
Features:
The pots are pressed and welded by quality stainless steel board, emulsifying process is under entire closed condition to prevent pollution from dust and micro-organism. Emulsified product is brightness and smoothness. Material of the pots produces centrifugation in homogenizer through high-speed cutting and dual-direction mixer, deasil frame mixing, anticlockwise mixing, scratch board agitator to make tetrafluoroethylene scratch board clung to wall and solve pasted material on inner wall. Ideal variable frequency speed regulation device implement various speed regulation. This equipment is equipped with unique integrated inspection window and enclosed-type illuminating lamp for observing emulsifying status. Three layers, heating and cooling are implemented in the same layer. The outside is coated aluminum silicate to prevent operators from scalding and ensure safety production. The body has inlet and outlet of cooling water. Diverse package joints are on boiler’s cap.
ZJR | 5 | 10 | 30 | 50 | 100 | 150 | 200 | 250 | 300 | 500 | 650 | 1000 | 1500 | |||
Design volume L | 6 | 10 | 30 | 50 | 100 | 150 | 200 | 250 | 300 | 500 | 650 | 1000 | 1500 | |||
Working volume L | 5 | 8 | 25 | 40 | 80 | 120 | 160 | 200 | 250 | 400 | 500 | 800 | 1200 | |||
Principal pot | Scraping mixer power Kw | 0.18 | 0.18 | 0.55 | 0.75 | 1.1 | 2.2 | 3 | 3 | 3 | 4 | 5.5 | 7.5 | 11 | ||
Scraping mixer speed rpm | 30-120 | 30-100(variable frequency) | 30-70(variable frequency) | 20-50(variable frequency) | 10-30(variable frequency) | |||||||||||
Homogenizer power Kw | 0.37 | 0.55 | 1.1 | 1.5 | 2.2 | 4 | 3.7 | 4 | 5.5 | 7.5 | 7.5 | 11 | 22 | |||
Homogenizer speed rpm | 2800 (option: variable frequency) | |||||||||||||||
Water pot | Design volume L | 3 | 5 | 20 | 35 | 60 | 90 | 120 | 150 | 180 | 300 | 400 | 500 | 800 | ||
Working volume L | 2.4 | 4 | 16 | 28 | 50 | 75 | 100 | 120 | 150 | 250 | 300 | 400 | 650 | |||
Mixing power Kw | 0.09 | 0.09 | 0.37 | 0.37 | 0.55 | 0.55 | 0.75 | 0.75 | 0.75 | 1.1 | 1.5 | 2.2 | 3 | |||
Mixing speed rpm | 120 | 120 | 120 | 960 | ||||||||||||
Oil pot | Design volume L | 3 | 5 | 15 | 25 | 40 | 60 | 80 | 100 | 120 | 200 | 300 | 500 | 800 | ||
Working volume L | 2.4 | 4 | 12 | 20 | 35 | 50 | 65 | 80 | 100 | 180 | 240 | 400 | 650 | |||
Mixing power Kw | 0.09 | 0.09 | 0.37 | 0.37 | 0.55 | 0.55 | 0.75 | 0.75 | 0.75 | 1.1 | 1.5 | 2.2 | 3 | |||
Mixing speed rpm | 120 | 120 | 120 | 960 | ||||||||||||
Vacuum | Motor power Kw | 0.12 | 0.37 | 0.75 | 1.5 | 3 | ||||||||||
Vacuum class | -0.08 | |||||||||||||||
Hoisting | Hoisting mode | Manual | electromotion/ hydraulic(option) | |||||||||||||
Heating mode | Electrical | Electrical/ steam heating(option) |
