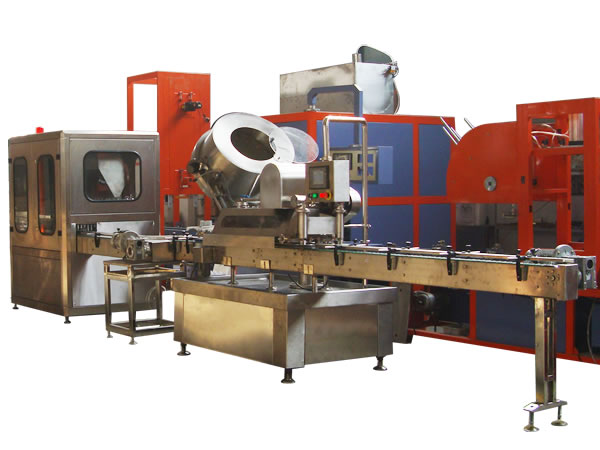

GJGX-300-8 Sauce filling machine
Ⅰ. Application and performance:
We design Jam filling machine especially for jar to fill sauce, jam and other material with granule, which save labor greatly and improve filling efficiency.
It adopts PLC control, small cubage, light weight and smart appearance. All contacts are 316L.
Ⅱ. Work theory:
Manual or bottle feeder places bottle on conveyor, after that the bottles are conveyed and separated to different filling line (there are two filling lines), when sensor checks the first bottle, block and orientate and count bottle, when the bottles are up to the set value, conveyor stops and filling starts, to the set value, filling stops. Then all bottles are conveyed to next step.
Ⅲ. Components:
Jam filling machine is composed of frame, hopper, filling system, postioner, electrical control, pneumatic control, feeding control and chain conveyor.
Ⅳ. Technical parameter
Specification | Data |
Voltage | ~380V 50Hz |
Filling range | 250-300ml |
Filler dimension L*W*H (mm) | 1620×1500×2100 |
Mixing power kw | 2.2 |
Filling power kw | 2.2 |
Dialing bottle power kw | 0.18 |
Conveying power kw | 0.75 |
Output | 1500-2000b/h |
Air consumption | 0.3m³/m |
★ B means bottle
