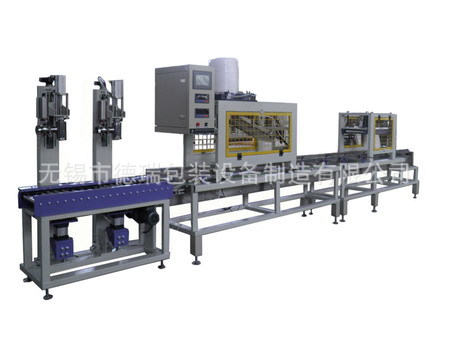

DCS-030-Z2 automatic Filling machine
Ⅰ. Application:
This utomatic filling machine is Used to fill paint, Coating, ink, bitumen, lubrication in the fields of Oil Industry, refine chemical and so on.
Ⅱ. Features:
1. This filling machine has fast and slow filling valves, which keep filling speed and precision.
2. Widely filling range and the accuracy is ±10g/barrel.
3. Filling nozzle adopts anti-leak device, air-free in the filling material.
4. Feeding and filling automatically, equipped with pneumatic capping part.
Ⅲ. Component and work theory:
1. Fully automatic filling machine is composed of filling system, weighing system, frame, capping system, control system, non-power roller and pneumatic control system.
2. Material Feeding mode: continuous feeding (by pump or hopper)
3. Feeding system provides material fast and slow filling through cylinder by solenoid valves.
4. Filling mode: normal or insertion (choose by customer)
5. Weighing System contains weighing bracket, sensors and weighing platform (connected with non-power roll, frame and filling system).
6. Pneumatic control system controls fast and slow filling valves.
7. During weighing process, except the material please do not add extra force to the balance, so as to make sure the weighing precision. You can change the height of filling nozzle by handle on the top.
Standard equipment:
Homemade meter (Lien in Wuxi) Sensor (Mettler Toledo)
Pneumatic organ (Airtac) Explosion-proof (Fei’ce)
Buyer offers feeding pump: outlet’s pressure is 3-5Kg,flux≥16m³/h
Ⅳ. Technical parameter
Name |
Model |
DCS-030-Z2 |
Automatic filling machine |
Filling range(Kg) |
10-30 (can be customized) |
Filling speed(times/h) |
300-500 | |
Filling accuracy |
0.25% | |
Power supply |
AC380V 50Hz | |
Air source |
Flux 0.1m3/min Pressure 0.4~0.6MPa | |
Feeding drum power KW |
0.4 | |
Discharging drum power KW |
0.75 | |
Ambient temperature |
0℃~40℃ | |
Overall dimension (mm) |
1800×2150×2650 | |
Weight (kg) |
600 |
