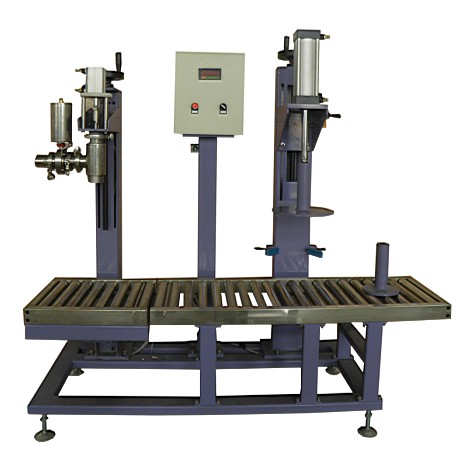

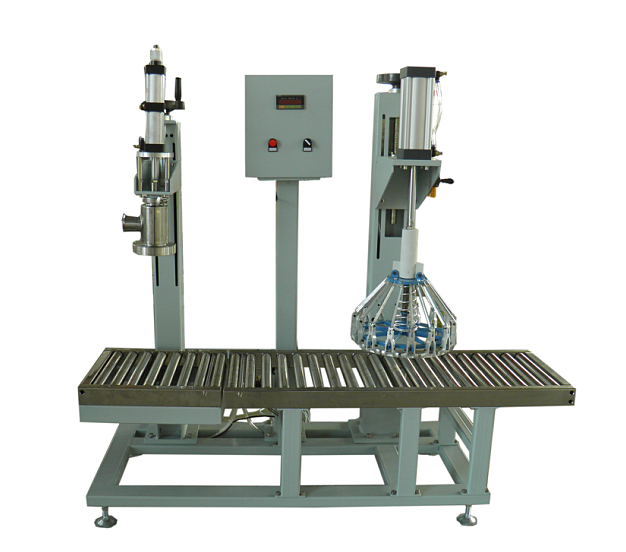

DCS-030-T semi-automatic filling and capping machine
Suitable Area:semi-automatic filling and capping machine is used to fill coating,ink,oil,paint,lubrication,and so on.
Main function:
1.Frame:fixed or movable type can choose
2.Material inlet:DN50
3.Liquid filling and capping machine adopts Germany OB company technique. High measuring precision and can’t be influenced by material.
4.Weight value shows immediately.
5.Gross weight or net weight filling mode
6.Fast speed and slow speed of filling mode
7.Feeding and filling automatically, equipped with pneumatic nipping and capping set.
8.Filling and capping in one machine
9.Filling head and pipeline are easy to clean and joint.
10.All contact with material are made of SUS304 stainless steel, others are made of carbon steel spray paint.
11. conveyor roller distance the ground can choose:300mm 500mm
12.Operation: barrel putting by manual, press Start button, fast and slow feeding valves start automatically. When achieves setting point 1 to shut off fast feeding valves, to setting point 2 to shut off slow feeding valve. Put on lid by worker and move drums to capping position (has assistant positioning set). Press capping button, move drums after capping. Then Warehousing.(equipped with stainless steel roller )
13Standard equipment:
Meter(chimei in shenzhen)、Sensor (Mettle in Changzhou)、Pneumatic organ (Airtac or Pneulead) Explosion-proof (Feice);
14Buyer offers feeding pump: outlet’s pressure is ≥3-5Kg,flux≥25m³/h,filter,voltage,air source(air compressor)、inlet pipe and valve,besure the machine can working,constant voltage&constant current
main technical parameter
Name |
Model parameter |
DCS-030-T |
semi-automatic liquid filling and capping machine |
barrel |
5L~20L |
filling range |
5~30kg/barrel | |
filling speed |
160-240barrel/hour | |
Allowable error |
±0.5% | |
power supply |
AC220V /50HZ±2HZ | |
Air supply |
flux 0.1m3/min pressure 0.4~0.6MPa | |
ambient temperature |
0℃~40℃ | |
overall size |
L×W×H |
1650×750×1900mm |
weight |
|
180kg |
Capping size |
Metal plastic |
≤300mm can be adjustable height ≤250mm can be adjustable height |
