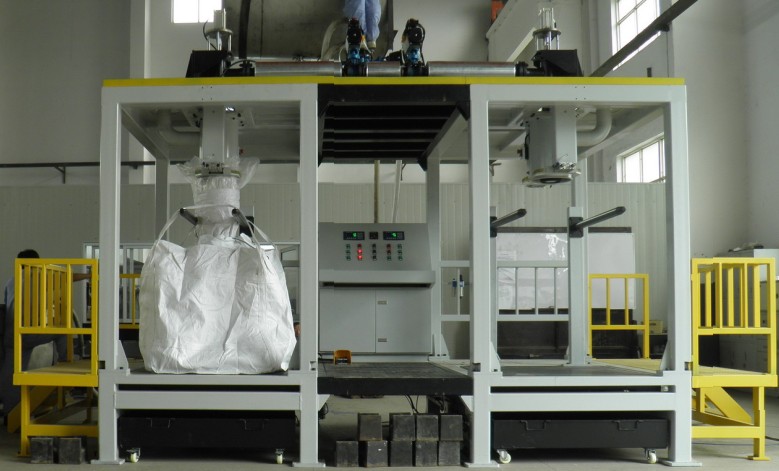

Ton packing machine DCS-1000
DCS-1000 Ton packing machine
Compose:DCS-1000KG filling machine is composed of : “with temperature input pipe and valve ”、“auto weight filling unit”、“control system”、“work platform” “safety guard” filling system material contact part is SUS304 stainless steel, others are carbon steel surface spray powder processing.
Filling system main parameter:
Filling container：1000kg bag
Filling material：liquid(high temperature≤130℃)
capability request：
Filling range: 500-1000KG
Filling speed: 10P-15P/hour
Voltage: 380V/220V±10%V AC50Hz
Power:≤7.5kw
Filling accuracy： ±0.2%
Air pressure: 0.5-0.7Mpa
Air source：0.1m3/min
Connect way: DN50 (material connect pipe) flange connect
Packing scale volume: 1200L
Packing bag size ：about 1170*1170*950(L*W*H)
Temperature: ≤130℃
Explosion-proof grade: EXIIBT4 (can deigned)
Net weight: 2500kg
