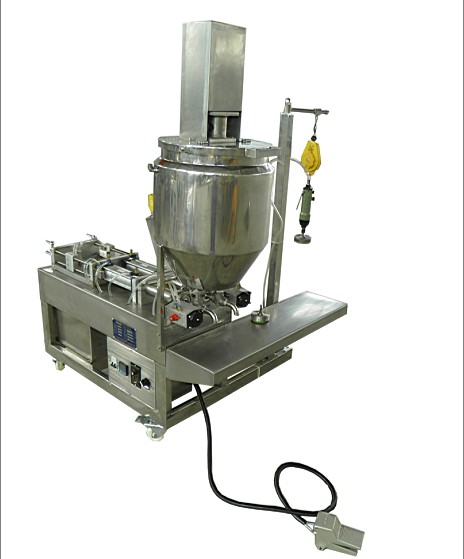

WG-L double head dosage filling and capping machine (hopper)
Applicable range: it is widely used to filling chemical, food, medicine, daily chemical, leather, and food additive such liquid material.
Model choose
Our filling model according to your maximum filling range.
Model detail is: (can be customized)
WG-50-Q (filling range: 10-50ml)
WG-100-Q (filling range: 50-100ml)
WG-250-Q (filling range: 100-250ml)
WG-500-Q (filling range: 200-500ml)
WG-1000-Q (filling range: 500-1000ml)
Main function:
Filling range can adjust
Filling speed can adjust
Filling head height can adjust
Hopper with liquid location control
Easy clean, easy operate
It is safe.
Manual or automatic can adjust
Filling head: single or double (choose by user)
Filling speed: 1500-2400P/H
Air source: 0.5-0.8Mpa
Air consumption: 0.3M3/min
Work theory:through the cyclinder front and back moving drive the position do the reciprocating motion;makemoving make the hopper produce negative pressure ,when the cylinder do the front moving,pull the position forward extrusion the material Material through the unidirectional valve of connect inter the tube.At last through the filling head inter the pre-filling bottle.(when feeding the filling head closed,discharging opened) finish the first filling.
Piston type filling machine for each filling is the machinery single action, so the same specification container have high filling accuracy and stability.
It uses air to control, well suit for explosion-proof condition with high safety.
No static、electrical phenomena, no need connect ground.
Because of pneumatic and hard orientation, the filling accuracy very high, can control within±0.1 %( according to the maximum filling volume)
In the hurry condition, only cut off the button, the position will return the original place, automatic stop filling.
Notice: filling the different material, if the material connects with the machine not the same, the sealing ring also. Should check before order.
