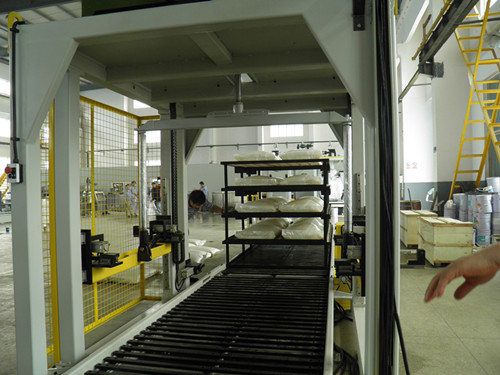

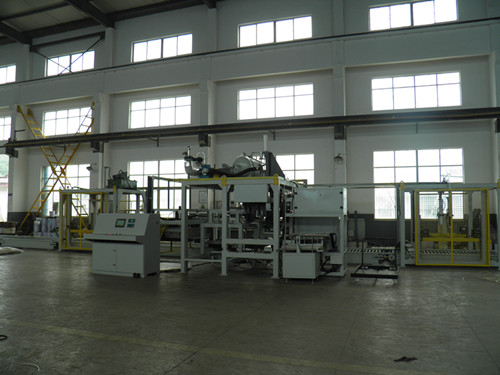

Bag Bitumen Filling Line DCS-40A
Filling container (packing materials): 25-40Kg bag
Filling materials: Asphalt (temperature ≤140℃)
Filling speed: 160-180P/hour
Voltage: 380V/220V, 50Hz
Packing line power: 28kW
Filling accuracy Grade 0.2 (±0.2%)
Purified wind pressure 0.5-0.7Mpa
Air consumption (including the empty shelf supply line): 6Nm3/h
Filling flow 7m3/h
Connection means: DN80 (material pipe) /3″ flange joint
This one is non-standard, if you need, please add my skype:derui2011 or call me:+86-13771155941
