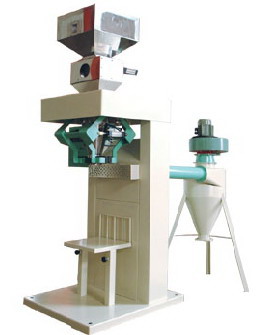

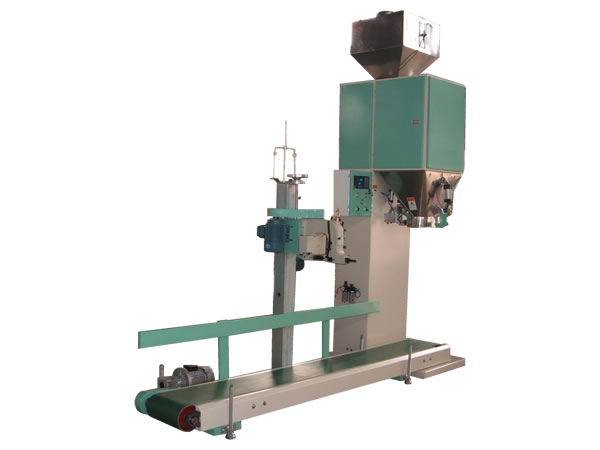

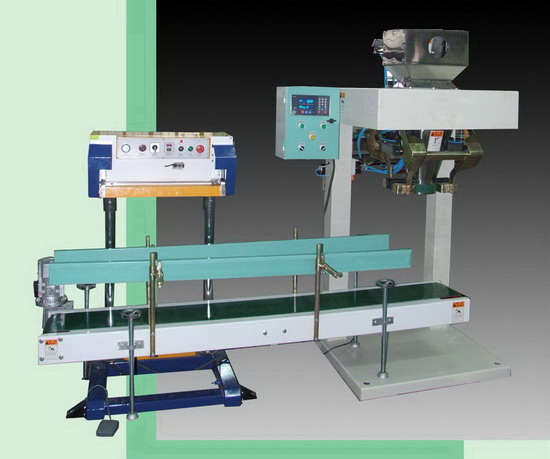

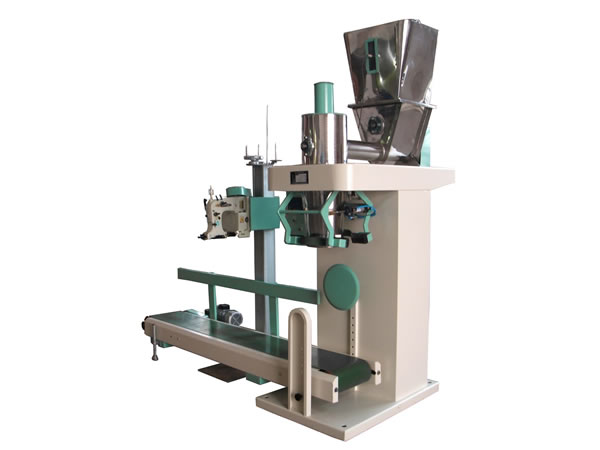

Powder packing machine
Main components:
Powder packing machine contains storage hopper, feeding system, bag holder and weighing system, frame and pneumatic control system. Powder packing machine is used to pack flour, fertilizer in field of chemical, food, pharmaceutical, building materials and so on.
◆ Storage hopper is used to material’s cushion, and ensures weighing speed and precision.
◆ Feeding system is composed of two valves to be dual-speed feeding, the fast guarantees the capacity and the slow for the precision.
◆ Bag holder and weighing system is composed of weighing bracket, sensor and holding arm.
◆ Frame supports entire system stability.
Operation
Semiautomatic packing machine: man place bag, (the hopper is full with material), valve starts automatically to fill and weigh, to set value 1, close fast feeding valve, to 2, slow feeding valve stops, also material feeding stops, show weight and loose bag.
| Name | Technical data | DCS-F-DLZ | |
| Powder packing machine | Packing range（kg） | 1-5， 5-25， 25-50 | |
| Packing speed（bag/h） | 180-220 | ||
| Accuracy | 0.5 | ||
| Allowance | ±0.25% | ||
| Voltage | AC220V +10% -15%/ 50Hz±2Hz | ||
| Air source | Flux 0.3m3/min Pressure 0.4～0.6MPa | ||
| Working temperature | 0℃～40℃ | ||
| Dimension (mm) | L1400×W750×H2450 | ||
| Weight （kg） | 600 | ||
| Conveyor | Conveying distance（mm） | 2200 | |
| Speed | 5m/minute | ||
| power | 0.55kw | ||
| voltage | AC380V 50Hz±2Hz | ||
| dimension（mm） | L2200×W460（belt’s width 320）×H（300-400） | ||
| Weight （kg） | 350 | ||
| Sewing machine | power | 0.55kw | |
| Dimension (mm) for reference | L400×W400（without sewing head）×H1700 | ||
| Weight （kg） | 150 | ||
| Sewing head | HeBei QingGong sewing machine Co.,Ltd GK35-2 | ||
