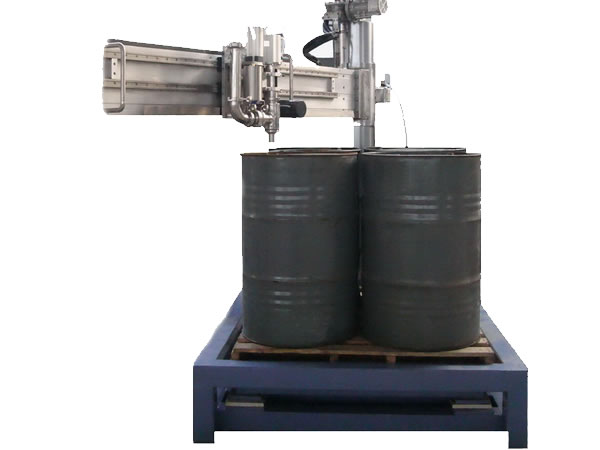

DCS-**-SY Drum filling machine
Application of Oil filling machine:
Drum filling machine is used to fill Bitumen, ink, silicon, coating, paint, lubrication in big drum, such as 150KG, 200L, 220L,170L, etc.
Working condition:
High temperature filling
Components: filling system, weighing system, frame, pneumatic control and control system.
Material Feeding mode: should be continuous and stable(by bitumen pump or hopper)
Filling mode: underneath type (insert to drum mouth)
Weighing system contains weighing bracket, sensor and weighing platform with non-power roller.
Pneumatic control system controls fast and slow feeding valves.
Control system: butterfly vlave, Intelligent control meter, high precision and stability.
Standard Equipment:
Meter (inland、Japan UNIPULSE or AD choose)
sensor(Mettler-toledo)
Pneumatic component(Airtac、SMC or FESTO)
Buyer supply: Feeding pump or hopper, outlet’s pressure: 3-5kgs, flowing ≥12m³/h
Man places drums at the bottom of filling head, filling nozzle down (button control) to penetrate the drum otherwise alarm warning) and peel off automatically, judge material (alarm). Start fast and slow filling valves. To set value 1, fast filling stops, to 2, slow filling stops. Lift filling nozzle, move the drum by man and then cap it.
Technical data:
Model | DCS-010-SY | DCS-050-SY | DCS-100-SY | DCS-300-SY | DCS-1000-SY |
Max. weight | 10kg | 50kg | 100kg | 300kg | 1000kg |
Filling range | 1-9kg | 10-50kg | 50-90kg | 100-300kg | 200-1000kg |
Filling precision | ±0.2% | ||||
Filling speed | 180-240d/h | 180-240 d/h | 100-180 d/h | 50-60 d/h | 10-30 d/h |
Filling temperature | 0-180℃ | ||||
Voltage | AC220/380V 50Hz | ||||
Air source | Flux 0.1m3/min Pressure 0.4~0.6MPa | ||||
Inlet | DN50~DN100 | ||||
Control mode | Semiautomatic | ||||
Valve material | SUS304 (316L) | ||||
Frame | Surface treatment: plastic spraying | ||||
G.W. | 200-300kg |
