1.Operate:

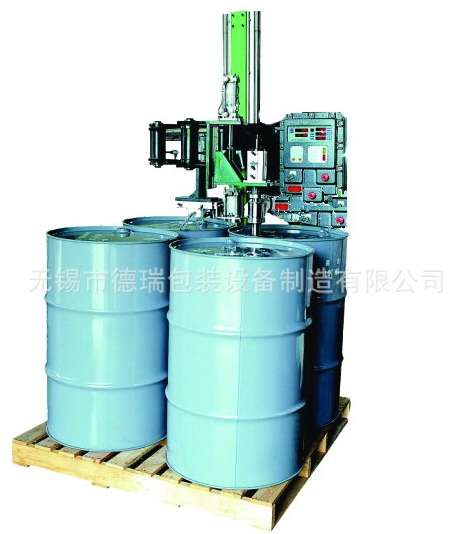

Manual open the cover, choose the work state “auto”, forklift feed the drum in orientation, manual push the joint arm, to achieve aim the drum hole; push the filling head control auto peel off; than filling head automatic into the drum, open the fast and slow valve, start filling, when achieve the set weight, auto close valve, auto close the feeder valve, stop filling, the filling head return, wait next drum.

2.Compose

• Weight system
• Automatic feeder system
• displayer
• controller
• high accuracy weight displayer
• electrical system
• connect parts 304 stainless steel

3. Features:

• weight range:200L-1000L
• filling speed:50-60drums each hour( 200L as sample)
• medium temperature：＜40℃
• weight system need high accuracy sensor
• filling accuracy: ±0.2%
• voltage：3800V/220V ±10%、50HZ ±2HZ
• working temperature：-10℃— +60℃
• air pressure：0.4-0.6MPa 0.5-0.8m³/h
