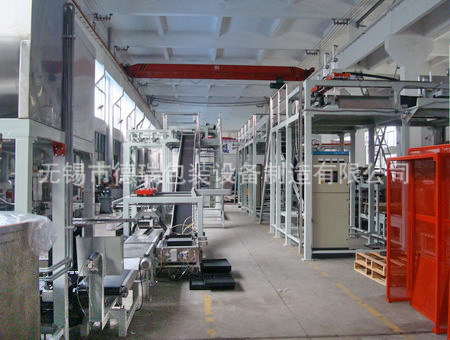

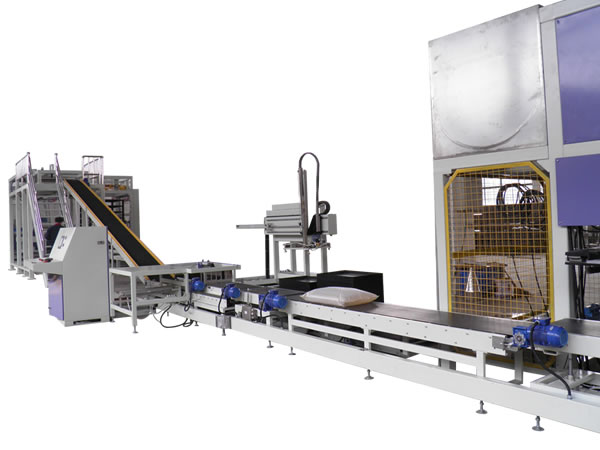

DCS-40B Asphalt filling line
I. Automatic feeding bag, accelerates conveying speed.
II. Man place bags at the appointed place, manipulator will catch one for one time to put it on the conveyor, then which is conveyed to filling position. When sensor checks bag, the machine will fill bag automatically as the set program. Whole process is very quickly, no waste and pollution. Filled bags are conveyed to next position.
III. Automatic tidying and feeding bag, sealing one by one
Filled bags are conveyed to tidy Plate packing position, manipulator catches one bag per time and puts it on the plate, after that, automatic conveyor to stacking machine.
IV. Automatic stacker

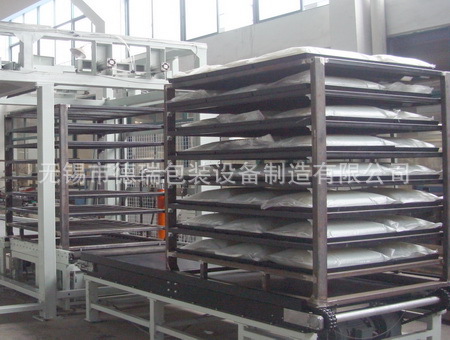

After plating, the bag is conveyed to stacking position. Stacking manipulator absorbs the bag and puts it on the pallet, when the stacked bags are up to set value, manipulator takes finished pallet to named place.
V. Components
| No. | System Name | Equipment name | Specification | Qty |
| 1 | Tidying system | Automatic bag tidying machine | Tidying speed: 100-120 bags/h, including SS roller and automatic separating and feeding device | 1set |
| 2 | Filling system | Automatic filling machine | Dosage weight control, filling precision: ±0.25% Filling speed: 120-150 bags/h, material: Q235+SUS304Features: high filling precision and speed, but low error. | 1set |
| 3 | Feeding system | Automatic fetching and feeding plate machine | Composed of sensor, executive unit and conveyor.Feeding Cap speed: 120-150 bags/h | 1set |
| 4 | Plating system | Automatic plating machine | Composed of sensor, orientator, plating unit and conveyor.Capping speed: 120-150 bags/h, | 1set |
| 5 | Stacking system | Stacker | Composed of sensor, orientator, manipulator, conveying system and pallet feeding systemPallet size: 1200×1200×150 mm (can also be customized) | 1set |
